Hot dip galvanized ground screws anchor screw pile foundation Helical Piles

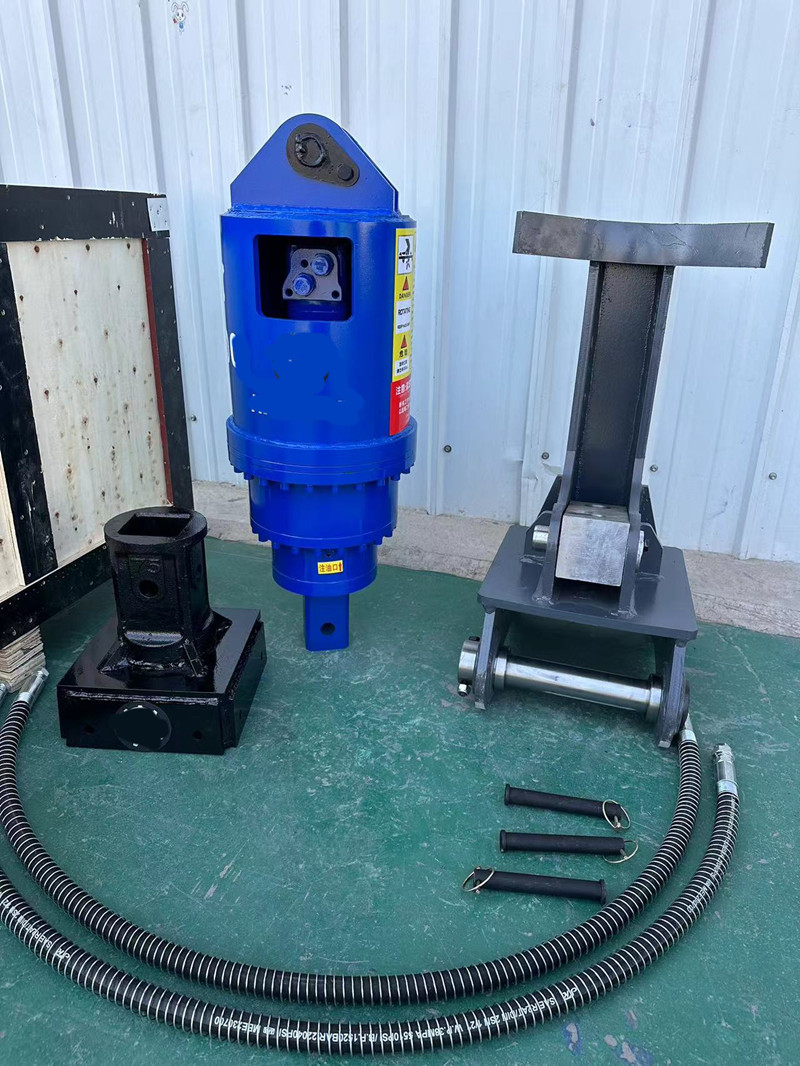

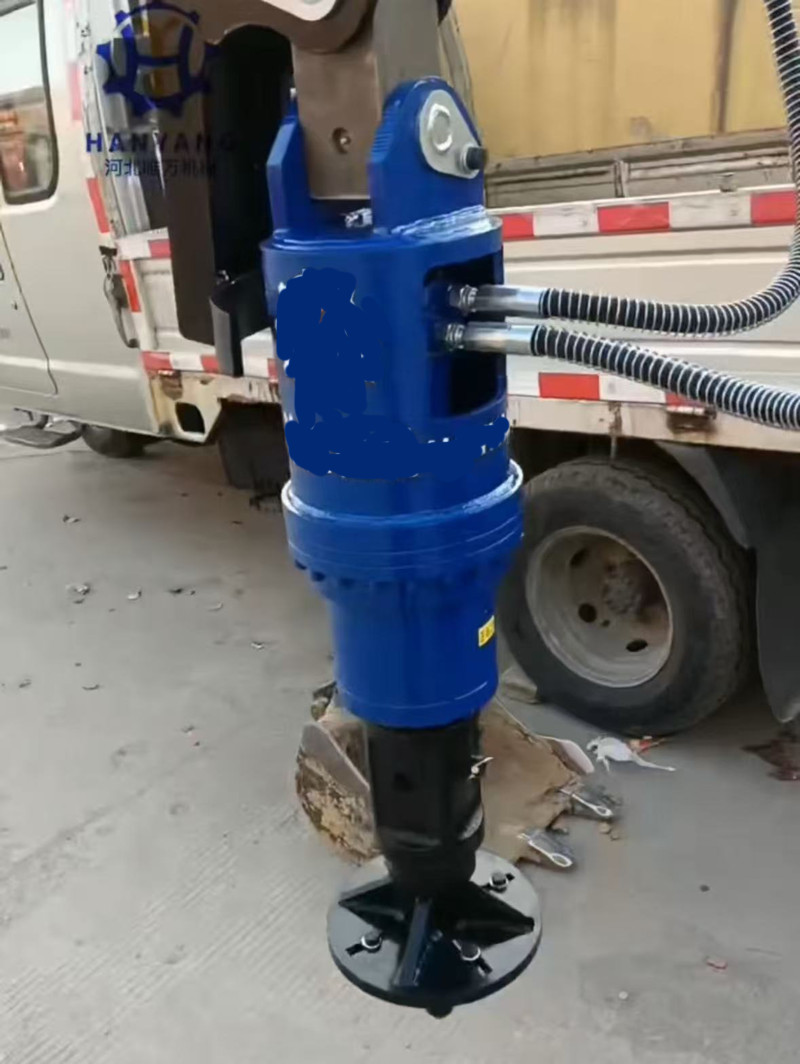

Ground Screws / Helical piles perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements. They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time. Screw piling can also be used for house piling foundations, fencing systems, retaining systems, pod and cabin fixing, and more!

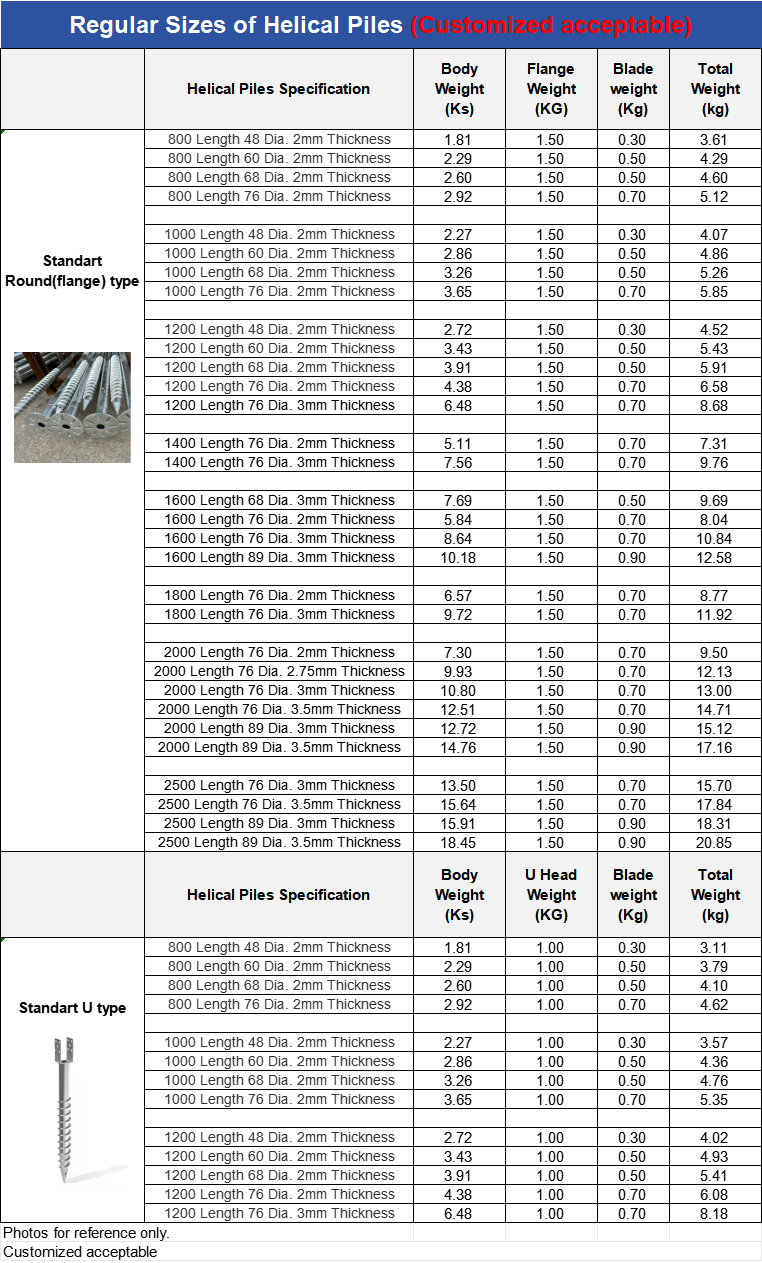

Length:600~3000mm
Outer Diameter: 48mm, 76mm, 89mm & 114mm
Pipe thickness:2mm, 2.5mm, 3mm & 4mm
Surface Treatment: Hot dip galvanized
Material:Q235

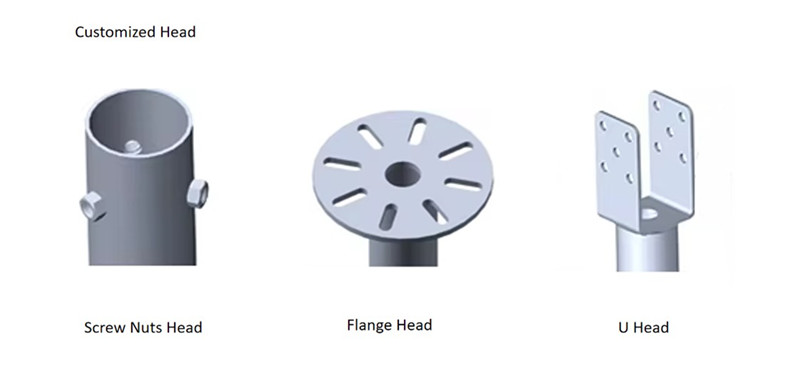

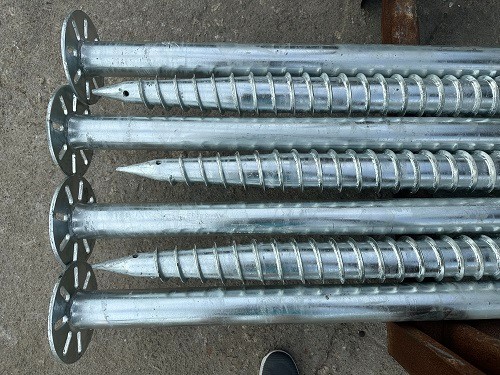

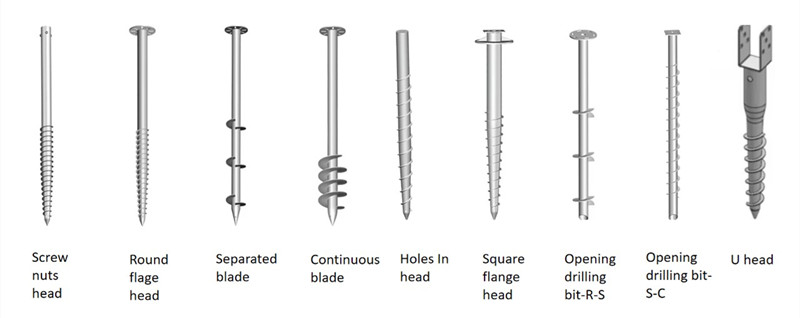

Helical pile is a new type of foundation building material, mainly including three parts: hot forged pipe body, helical blade, and connecting flange plate.

1.Advantages:
   1) Structural advantages: It is driven into underground in a swirling manner, making the soil not easy to be loose and utilizing the soil's own conditions, The blade structure gives it good at anti draw and grip.
   2) Convenient construction: Convenient construction, short cycle, less affected by the environment, no need for ground leveling, waste soil treatment, excavation, etc. Construction can also be carried out in rainy, snowy, frozen and other weather conditions, and it is also easy to relocate and recycle.
   3) Low cost: Compared to the multiple processes of concrete construction, helical piles only needs positioning and driving, which can save material and labor costs.

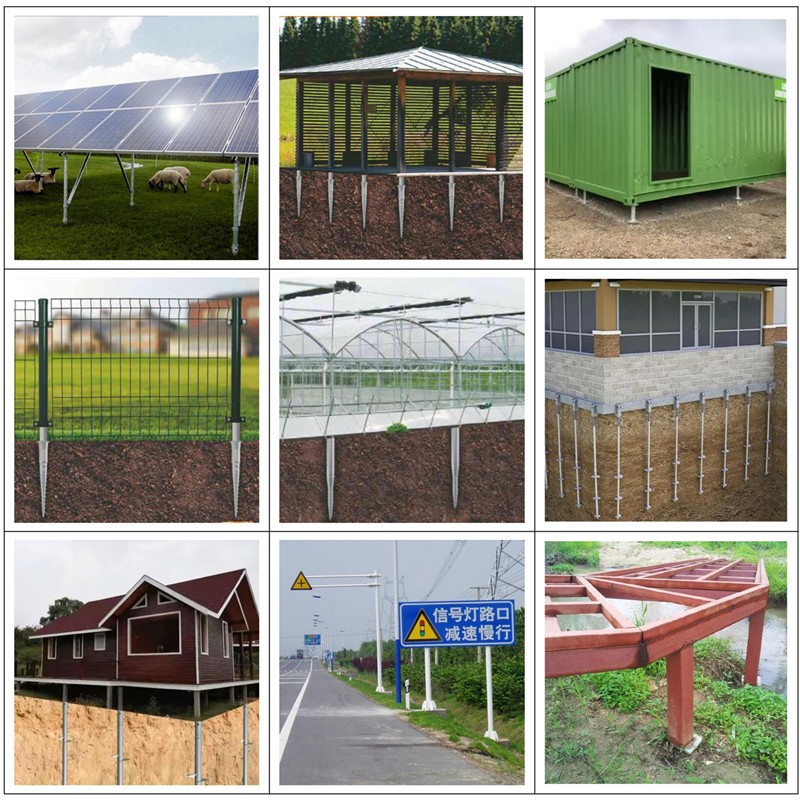

2. Helical piles have the following common usage scenarios:
    1).In the field of architecture:
        a).Temporary building construction: For temporary office buildings, worker dormitories, etc. on some construction sites, the use of helical piles can quickly fix the foundation, easy for remove and transfer, and cause relatively little disturbance to the ground during construction.
       b).Small building support: For example, small landscape pavilions, watchtowers, etc., helical piles can provide stable support to ensure the stability of the building structure.
   2). Solar photovoltaic industry:
Photovoltaic power station installation: In ground photovoltaic power stations, helical piles can be used to fix photovoltaic brackets, adapt to different soil conditions, easy to install, help quickly lay photovoltaic panels, and improve the efficiency of power station construction.
   3)Transportation facilities:
Installing Traffic Signs: Various signs, speed limit signs, etc. on the road are fixed to the ground with helical piles, and the installation process is simple, which can ensure the stability of the signs and prevent them from tipping over.
   4).Construction of communication base stations:
Installation of base station tower: used to fix the tower of a communication base station, making it stand stably, especially in areas with complex terrain and difficult construction, the advantages of ground helical piles are obvious.
   5).In the field of agriculture:
       a).Greenhouse construction: It can be used to fix the skeleton structure of the greenhouse, making it convenient to build greenhouses on different plots of land, and the cost is relatively low which is conducive to agricultural production.
       b).Installation of livestock fence: When delineating the livestock breeding area, the use of helical piles in conjunction with fence nets can quickly construct a fence, providing isolation and protection.
